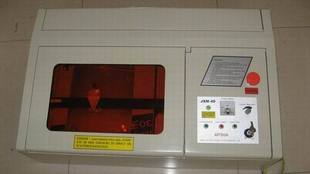

MS-K40(出口型)激光刻章機 刻章機之家

更新:2015/8/7 23:22:14??????點擊:
  • 品牌:???磨石電子
  • 型號:???
  • 在線訂購
產品介紹

MS-K40 (universal type) s laser engraved machine (computer carved Chapter machine)



model

moshi40A

Up-to-date 2009 carved area

100*180mm

Laser power lessthanorequalto

40w

Engraving speed

0-500mm/s/19.7in./s(arylic)

Cutting speed

0-50mm/s/0-1.97in./s(arylic)

Cutting depth

0-8mm/0-0.315in.(arylic)

The smallest size sculpture

1x1mm/(0.04x0.04)in

Resolution

0.0125mm/0.001in.(1000dpi)

Power Supply

220+/-10%50hz(110vOptional transformer)

Re-positioning accuracy

Less than or equal to0.01mm/0.0004in.

Total power

500W.

Motor type

Stepping Motor

Image Format

Support plt/dxf/bmp/jpg/gif/pgn/tif

Software Support

newlyseal12&newlydraw1

Carved surface (Yes / No)

No

Cooling water (Yes / No)

Yes

Maximum thickness of carving materials (mm)

80mm/3.1in.

Laser tube (life)

1440hours

Recommended accessories supplies

Laser tube, lens, reflector

Machine size

810x510x265mm (31.9x20.1x10.4)in.

Net Weight

28kg

Shipping weight

31.5kg

Shipment size

970x670x420mm/(38.2x26.4x16.5)in

MS-K40 (export-oriented) Chapter laser engraved machine (computer carving machine s) Description:
MS-K40 (export-oriented) Chapter laser engraved machine (computer carved Chapter machine) Korean imports of product components, the latest into the light, mechanical, electrical mechanical movement technology and design integration of new programs in October 2006 in the developed high-tech products exports. The appearance of the product, performance, accuracy, security and foreign requirements, foreign technical indicators have reached the most perfect combination, the WINDOWS (all systems) the whole of Chinese, English, Korean display interface to support various models of printers, scanners, compatible TIF international standard font and BMP, JPG files, while the seal lithography
Fully to achieve results, "the Chinese people of China and State public safety industry standard" (GA241.-2000). Simple and strictly regulate the font, learning to use, the right word, anti-word, the word yang arbitrary conversion, multi-lingual text, high-quality, to meet the needs of a large number of overseas customers.

This product over the previous generations of products is quite different:
1. Set up a micro-switch is not closed so that when the flip is absolutely no light from improved security, as well as thickening of the fuselage reinforcement transport safer and more long-term corrosion resistance.
2. An increase of high-grade cooling fan 110V lower temperature all the electronic components and prolong the life span of electronic components and more volatile technology, the installation of built-in security, aesthetics socket connector is also no need for external switching power supply.
3. The use of advanced high-speed, high precision and high life expectancy, sculpture, characterization, cutting and other advanced new motherboard, so that the work easier.
4. Priority to the design and use of the thickening, high flatness of the landing platform to enable large-format sculpture solved using high-quality bearings, high-precision stepper-aided manual belt.
5. Flexible options with an external transformer, so that domestic customers can be our new generic export quality seal of the latest laser engraving machine, it will be the next major market force.
MS-K40 (export-oriented) Chapter laser engraved machine (computer carving machine chapter) scope of application:
1, MS-K40 (export-oriented) Chapter laser engraved machine (computer carved Chapter machine) is applied to seal the non-metallic materials such as: horns and India, Indian wood, red plastic printed, printed plexiglass, atomic and India, crystal India Indian Jade and so on.
2, MS-K40 (export-oriented) Chapter laser engraved machine (computer carved Chapter machine) is applied to small handicrafts processing, in the two-color board, wood, bamboo, organic glass plate, cloth on a wide range of graphics lithography and text.
3, MS-K40 (export-oriented) Chapter laser engraved machine (computer carved Chapter machine) can be carved in the electronic components on the name, type, logos, designs and so on, very permanent.



model型號

moshi40A

2013最新雕刻面積

220x200mm/(8.7x7.9)in.

激光功率lessthanorequalto

40w

雕刻速度

0-500mm/s/19.7in./s(arylic)

切割速度

0-50mm/s/0-1.97in./s(arylic)

切割深度

0-8mm/0-0.315in.(arylic)

最小雕刻尺寸

1x1mm/(0.04x0.04)in

分辨率

0.0254mm/0.001in.(1000dpi)

電源

220+/-10%50hz(110v變壓器可選)

重新定位精確度

小于或等于0.01mm/0.0004in.

總功率

500W

電機類型

步進電機

通信接口

usb2.0

圖像格式

支持plt/dxf/bmp/jpg/gif/pgn/tif

軟件支持

newlyseal12&newlydraw1

雕刻曲面(/)

冷水降溫(/)

雕刻材料最大厚度

80mm/3.1in.

激光管(壽命)

1000-1200hours

推薦配件耗材

激光管、透鏡、反射鏡

機器尺寸

810x510x265mm

(31.9x20.1x10.4)in.

凈重

35kg

裝運重量

37kg

裝運尺寸

970x670x420mm/(38.2x26.4x16.5)in.







MSK40(出口型)激光刻章機(電腦刻章機)簡介:
MS
K40(出口型)激光刻章機(電腦刻章機)系列產品采用韓國進口元件,融入最新光、機、電機械運動一體化全新技術和設計方案于200610月的開發出的高科技對外出口型產品。該產品外觀、性能、精度,安全,國外要求,國外各項技術指標均達到最完美組合,其WINDOWS(所有系統)全中,,韓文界面顯示,支持各種型號打印機、掃描儀,兼容TIF國際標準字庫及BMPJPG文件,同時其刻制的印章
效果完全能達到《中華人民華和國公共安全行業標準》(GA241.2000)。操作簡單,字體嚴格規范,好學易用,正字、反字、陽字隨意轉換,多種語言文字,高品質,滿足大量海外客戶的需要.

這款產品比前幾代產品大有不同:

1.增設了微動開關使機蓋不落下時不出光絕對提高了起安全性以及加固加厚的機身使運輸更安全和耐腐蝕更長久.

2.增加了高檔110V散熱風扇降低所有電子元件的溫度從而延長了電子元件的壽命和更高的技術揮發性,加裝內置安全,美觀插座更無須外在接插開關電源.

3.采用先進高速,高精度,高壽命,雕刻,刻劃,切割等先進新型主板,使工作更得心應手.

4.優先設計和使用了加厚,高平面度的升降平臺使大幅面雕刻迎刃而解,采用優質軸承,高精度步進皮帶手動輔助操作.

5.靈活的內外置變壓器選擇,使國內客戶也能通用我們的新型出口品質的最新激光雕刻印章機,它將是未來市場主要的生力軍.

MSK40(出口型)激光刻章機(電腦刻章機)適用范圍:
1MSK40(出口型)激光刻章機(電腦刻章機)適用于非金屬材料的印章如:牛角印、木頭印、紅塑印、有機玻璃印、原子印、水晶印、玉石印等。
2MSK40(出口型)激光刻章機(電腦刻章機)適用于小面積的工藝品加工,在雙色板、木板、竹片、有機玻璃板、布匹上刻制各樣的圖形和文字。
3MSK40(出口型)激光刻章機(電腦刻章機)可在電子元器件上雕刻名稱、型號、標識、圖案等,極具永久性。



功能特點:



1增設了微動開關使機蓋不落下時不出光絕對提高了其安全性以及加固加厚的機身使運輸更安全和耐腐蝕更長
2增加了高檔110V散熱風扇降低所有電子軟件的溫度從而延長了電子元件的壽命和更高的技術揮發性加裝內置安全美觀插座更無須外在接插開關電源

3采用先進技術,主板升級為USB接口直接輸出,并配備了切割功能,主板性能更加穩定,是適應的廣大客戶的需要
4優先設計和使用了加厚高平面度的升降平臺使大幅面雕刻迎刃而解,采用優質軸承,高精度步進皮帶手動輔助操作
5靈活的內外置變壓器選擇,使國內客戶也能通用我們的新型出口品質的最新激光雕刻印章機,它將是未來市場的主要的生力軍
適用材料:
木頭,竹簡,玉器,大理石,有機玻璃,水晶,塑料,衣服,紙張,皮革,橡膠,陶瓷,玻璃以及其他非金屬材料。
廣告,工藝品,皮革,玩具,服裝,模型,建筑裝潢,電腦繡花裁剪,包裝業和紙箱印刷業等。
